Find All Your Needs on the Yealink WH67 Convertible UC Workstation

The Yealink WH67 Convertible DECT Wireless Headset UC Workstation is more than a single base. It eases the management of business communication demands along with multiple USB devices.

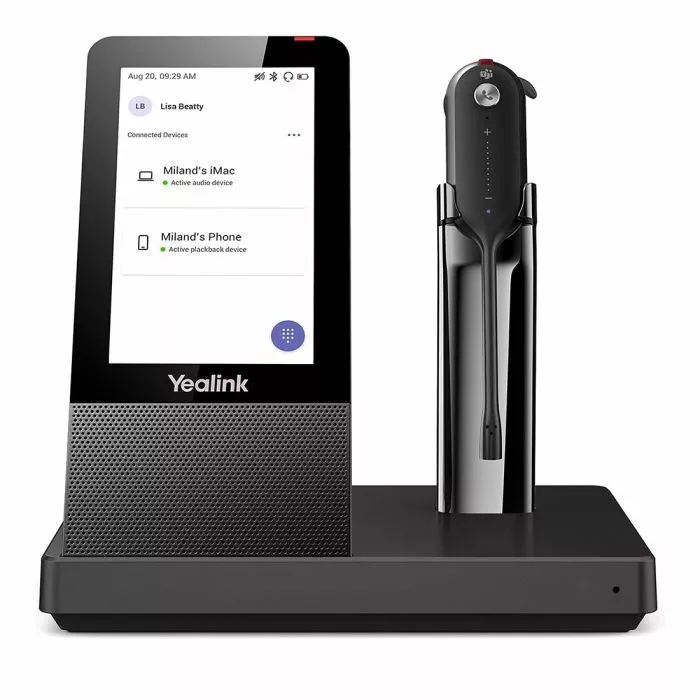

The UC Workstation also delivers great flexibility with a set of integrated features to facilitate your daily routine including a full-duplex speakerphone, a wireless charging mobile phone stand (sold separately), a 4-in touch console and a USB hub. It’s professional, collaborative, and available.

Deliver HD Voice with Yealink Acoustic Shield

With Yealink Acoustic Shield technology, the Yealink WH67 Convertible Wireless DECT Headset will filter out background noise with 2 microphones, providing HD voice quality for your listeners, and ensuring distraction-free conversation.

Stay Focused and Enhance Productivity

The Yealink UC Workstation is more than a single base. It eases the management of business communication demands and other USB devices. It also delivers great flexibility with a set of integrated features to facilitate your daily routine. It is professional, collaborative, and available.

Ensure Your Communication with Comfort

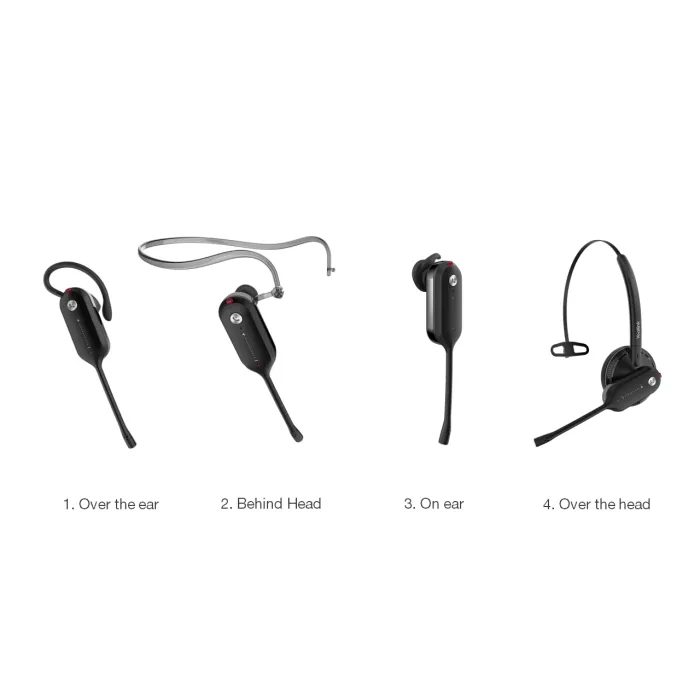

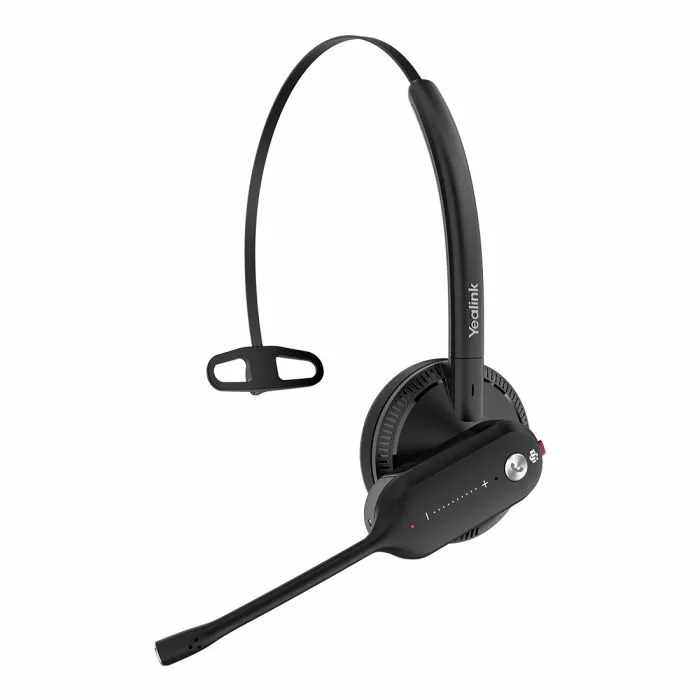

To meet the various preferences of users, Yealink created the WH67 DECT wireless headset with a lightweight design, 4 wearing styles, as well as different sized eartips to ensure all-day comfort.

Wireless Freedom & All Day Power

No matter when and where your conversation begins, the WH67 headset will give you the performance you need for worry-free roaming. With up to 120m wireless range and 7 hours talk time, it is suitable for users’ daily communication needs.

In addition, the WH67 Convertible DECT wireless headset supports high density installation in the open office.

Match Your Platform

Thanks to the broad compatibility of Yealink personal collaboration devices, users can enjoy consistent call experience across UC platforms, which promises better communication quality, higher productivity and lower IT costs.

One For All Devices Management

Yealink USB Connect is available for the management of multiple Yealink USB devices, including headsets, speakerphones, and webcams. All the settings can be done through Yealink USB Connect.

Yealink WH67 Convertible DECT Wireless Headset Specifications:

General

• 4-inch (480×800) capacitive touch screen
• 2 feature buttons
• 1 Type-A USB 3.0 port
• Built-in Bluetooth 4.2
• Connectivity
  • USB 3.0
  • 2 – Bluetooth devices
• Integrated busylight LED indicator
• 2 Type-A USB 3.0 ports in the built-in hub
• Charging stand (for headset)
• Headset weight: 19 grams
• Workstation weight: 344 grams
• Warranty: 2 yr

UC Version

• Model: WH67-UC
• SKU: 1308041
• WH6X Series

Teams Version

• Model: WH67-Teams
• SKU: 1308040
• WH6X Series

Battery for Yealink WH67 Convertible Wireless DECT Headset

• Talk time: Up to 7 hrs
• Standby time: Up to 54 hrs
• Charging time: 2.5 hrs (12V/2A)

DECT

• Wireless range: Up to 120m/394 feet
• Secure DECT (level): Step C: authentication – DSAA2, encryption – DSC2 (128 bit)

Audio (Headset)

• Dual microphone
• Microphone sensitivity: -38.0+/-2 dBV
• Microphone frequency range: 100 Hz-10 kHz
• Speaker size: Ø 13.6
• Speaker sensitivity: 116+/-3 dB, 0.179 V
• Speaker impedance: 32+/-4.8 Ω
• Speaker max output power: 10 mW
• Speaker frequency range: 20 Hz-14 kHz
• Speaker bandwidth:
  • Talk mode: wideband, 100Hz – 8kHz, 16kHz sample rate
• Hearing Protection
  • Peak Block Protection
  • Daily Noise Exposure Protection

Audio (Base)

• Microphone type
  • ECM Omnidirectional microphone
• Microphone sensitivity
  • -38.0+/-2 dBV
• Microphone frequency range
  • 70 Hz – 20 kHz
• Speaker size
  • 40mm*20.8mm
• Speaker sensitivity
  • 97+/-3 dB
• Speaker impedance
  • 4 Ω +/-15%
• Speaker max input power
  • 4 W
• Speaker frequency range
  • 160 Hz – 20 kHz

Easy Call Management

• Answer/End/Reject a call
• Volume up/down
• Microphone mute

What comes in the Yealink WH67 Convertible DECT Wireless Headset box:

Yealink WH67 Convertible DECT Wireless Headset Firmware Requirements:

1) Determine Yealink phone firmware from one of the below methods:

From the idle screen press OK

From the idle screen select Menu and Status

• Description

  All-in-One UC Workstation
  The Yealink UC Workstation is more than a single base, it eases the management of business communication demands and other USB devices. It also delivers great flexibility with a set of integrated features to facilitate your daily routine. It is professional, collaborative, and available.

  Find All Your Needs on the UC Workstation
  The UC Workstation gives users the possibility and flexibility to connect devices, and manage communications from a single device, and also act as a hub that integrates a full-duplex speakerphone, a wireless charging mobile phone stand, a 4-inch touch console, and a USB hub, which together offer an incredible set of features allowing you to meet, connect and collaborate seamlessly and intelligently.

  Deliver HD Voice with Yealink Acoustic Shield
  With Yealink Acoustic Shield technology, the headsets could well filter out background noise by 2x microphones while you are on a call, which provides a HD voice quality for your listeners, and ensures distraction-free conversation.Wireless Freedom & All Day Power
  No matter when and where your conversation begins, the headsets can always keep up. With up to 160m wireless range and 14 hours talk time, it is suitable for users’ daily communication needs.

  Includes


  • Base
  • Headset
  • Earhook & eartips
  • Headband
  • Neckband
  • Power Adapter
  • 1m USB 3.0 Cable x2
  • Quick Start Guide
